ACiQ

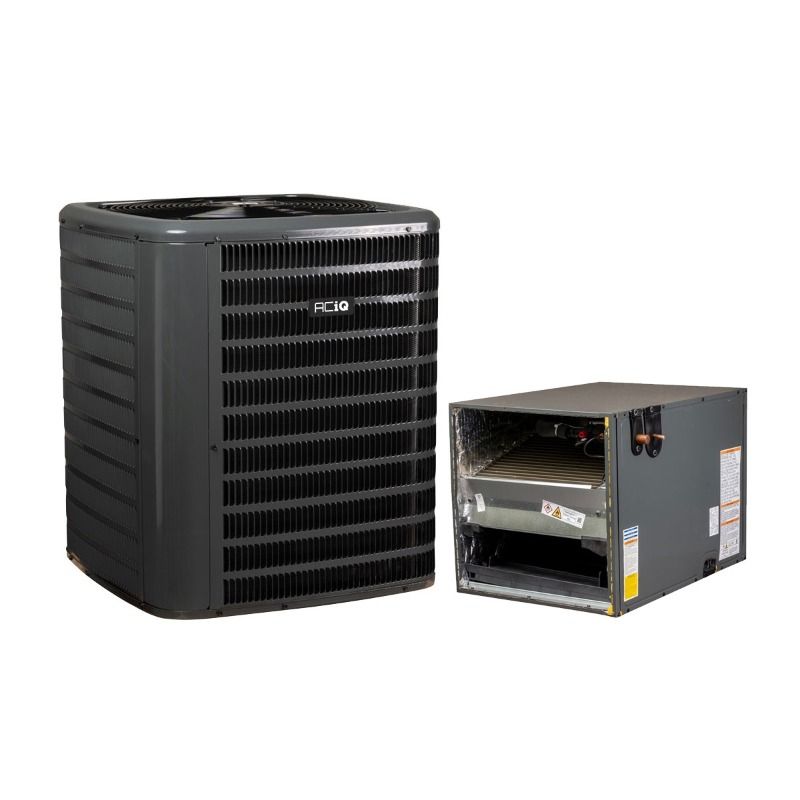

AQ-GLXS4BA4810 + AQ-CHPTA4830C3
Product Overview
4 Ton 14.3 SEER2 Single Stage Air Conditioner Condenser - R32
OVERVIEW
The ACiQ brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the ACiQ AQ-GLXS4BA4810 air conditioner condenser is a popular choice for homeowners around the United States.
QUICK FACTS
- Ideal size to cover a medium to large house in ideal climates
- 4 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
4 Ton
The AQ-GLXS4BA4810 ACiQ condenser is a 4 ton unit, meaning that it can cover up to a medium to large house in an ideal climate. In some unit bundles, the required AC coil may be larger than this condenser in tonnage. This is intentional, as it maintains the unit's efficiency.
14.3 SEER2
The AQ-GLXS4BA4810 AC-only conditioner can be up to 14.3 SEER2 in efficiency when paired with the proper equipment. As the standard efficiency on the market for all states, this unit is average in efficiency. Every SEER2 point is 5-7% more efficient than the one lower than it, saving you money the higher the SEER2 rating of the unit. Please note that this product is regulated by DOE Efficiency Standards.
Warranty
The AQ-GLXS4BA4810 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The AQ-GLXS4BA4810 ACiQ AC condenser cabinet has a baked-on painted finish and is made of a galvanized-steel, making it approved for up to 500 hours of salt-spray and compliant with the 2010 Florida building code integrity requirements for hurricane-type winds when properly anchored. Moreover, the unit is equipped from the factory with a filter dryer that lowers general wear-and-tear on the unit. The AQ-GLXS4BA4810 provides peace of mind thanks to its durability and reliability enhancements.
Installation and Maintenance
The ACiQ AQ-GLXS4BA4810 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.
Comfort in Mind
The ACiQ brand always has its customer's comfort in mind. The AQ-GLXS4BA4810 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.
4 Ton 21" Height Horizontal Cased Evaporator Coil - TXV - R32
OVERVIEW
The ACiQ AQ-CHPTA4830C3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the AQ-CHPTA4830C3 lives up to ACiQ's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.
Quick Facts
- 4 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
4 Tons
At an output of 4 tons, the ACiQ AQ-CHPTA4830C3 evaporator coil is ready for almost any horizontal application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser's tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit's efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.
Warranty
The AQ-CHPTA4830C3 coil is covered under ACiQ's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R32 condenser, and the entire system is registered online through the manufacturer.
Installation and Durability
The ACiQ AQ-CHPTA4830C3 horizontal evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil's durable cabinet has a split-seam.
Enhanced Comfort and Efficiency
The ACiQ AQ-CHPTA4830C3 horizontal evaporator coil's built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the AQ-CHPTA4830C3 to live up to the ACiQ quality name.
Technical Specifications - AQ-GLXS4BA4810
| sku | AQ-GLXS4BA4810 |
|---|---|
| weight (in lbs) | 226.000000 |
| brand/manufacturer | Private Brand |
| replaces | GSXN404810 |
| product features | New Refrigerant Compliant |
| cooling btu | 48,000 |
| decibel level (dba) | 73 |
| horsepower | 1/6 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 14.3 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid line | 3/8" |
| suction line | 1 1/8" |
| liquid valve size | 3/8" |
| suction valve size | 7/8" |
| electrical | 208/230v 1 Phase 60Hz |
| max breaker size | 40 Amps |
| min. breaker size | 25.2 Amps |
| tonnage | 4 Ton |
| connection | Sweat |
| height | 35 3/4" |
| width | 35 1/2" |
| depth | 35 1/2" |
| warranty | 10 Years Parts Limited Warranty with Online Registration |
| resources | GLXS4B Installation ManualGLXS4B Specifications SheetGLXS4B Service ManualGoodman Condenser WarrantyYou will need Adobe� Acrobat� Reader to view PDF documents. |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-CHPTA4830C3
| sku | AQ-CHPTA4830C3 |
|---|---|
| weight (in lbs) | 78.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| configuration | Horizontal |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 7/8" |
| tonnage | 4 Ton |
| style | A-Coil |
| certification | ETL Listed | AHRI Certified |
| height | 21" |
| width | 30" |
| depth | 21" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
