ACiQ

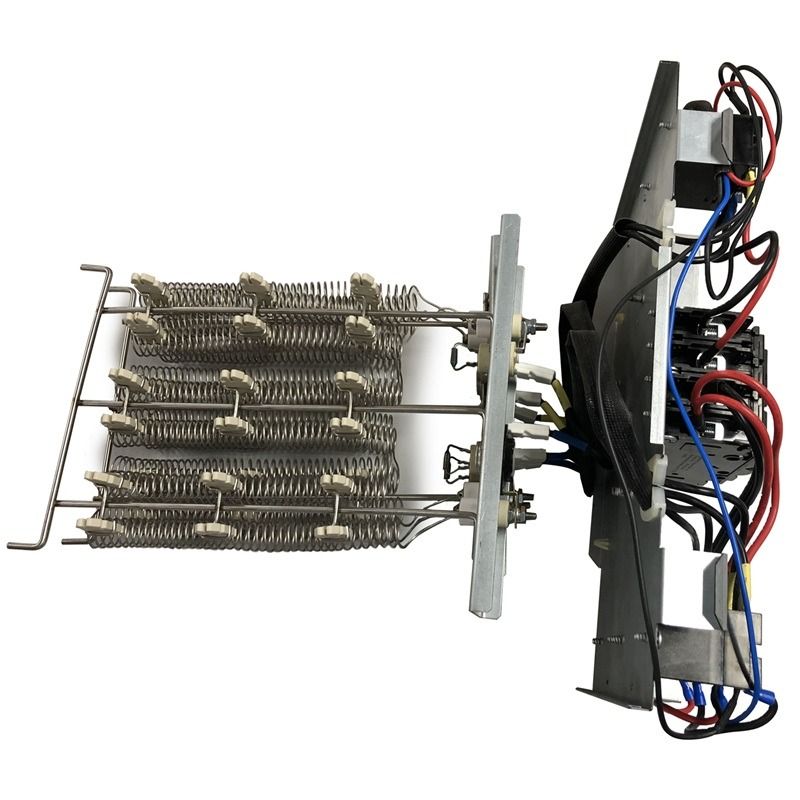

ACiQ 20 Kilowatt 68,200 BTU Heater Coil
Product Overview
The PEAH-20C(UL) is a 20kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.
Please note that this heater coil requires one 30 amp breaker to function.
Compatible Air Handlers
- ACiQ-36-PAH
- ACiQ-48-PAH
- ACiQ-60-PAH
Technical Specifications — PEAH-20C(UL)
| sku | PEAH-20C(UL) |
|---|---|
| weight (in lbs) | 16.310000 |
| brand/manufacturer | ACiQ |
| heating btu | 68,200 |
| electric heat | 20 Kilowatts |
| electrical | 208/230V, 1 Phase, 60Hz |
| phase | Single Phase |
| max breaker size | Circuit 1: 50 / 60, Circuit 2: 50 / 60 |
| min. breaker size | Circuit 1: 46 / 53, Circuit 2: 46 / 53 |
| height | 8.07" |
| width | 22.00" |
| depth | 10.59" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
