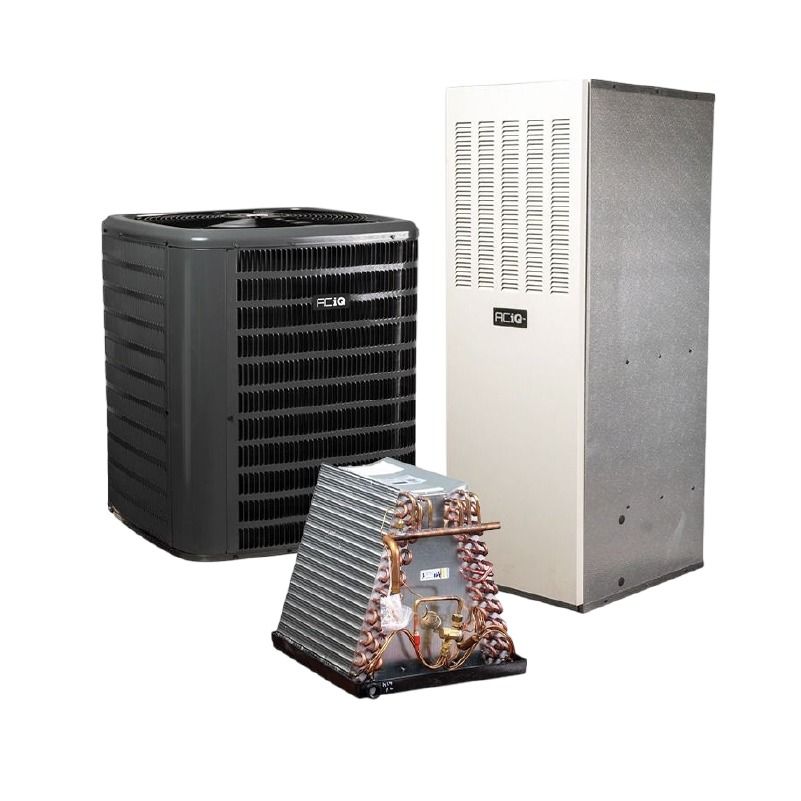

ACIQ 2 Ton 13.4 SEER2 10KW Mobile Home Air Conditioner & Electric Furnace System with Coil - R32
Product Overview
ACIQ 2 Ton Uncased Downflow Mobile Home Coil | Copper - R32
OVERVIEW
The ACIQ-MH24CU3VYEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
- 2 ton downflow evaporator coil
- Designed for mobile and manufactured home use only
- Compatible with both AC-only and heat pump condensers
- Sturdy and compact design
- Rifled copper tubing, enhanced aluminum fins
- Left-hand refrigerant and plumbing connections
- Heavy duty polypropylene drain pans
- AHRI certifiable with all brands of A/C and heat pump systems
- Downflow plate kit included
2 TON
The ACIQ-MH24CU3VYEC evaporator coil is rated to be compatible with condensers with up to 2 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290℉ +/-5℉. Specify metal drain pans for these applications.

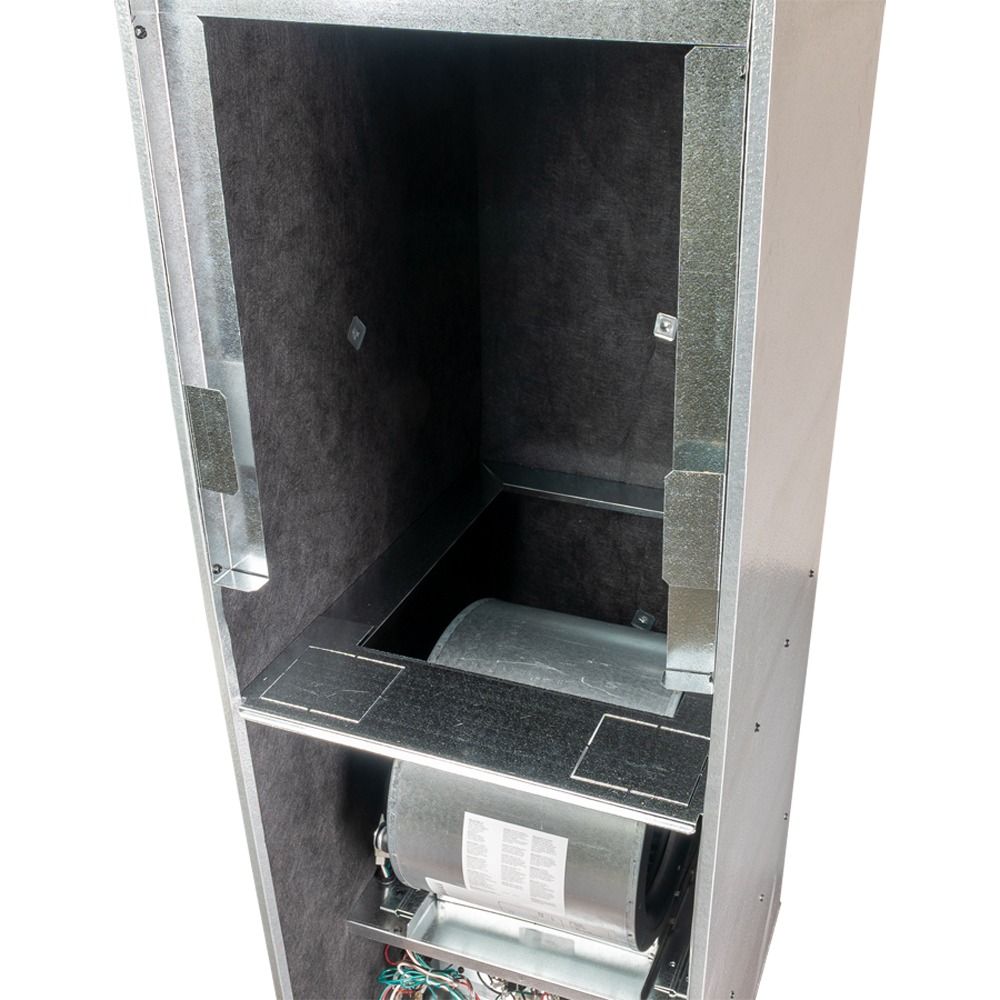

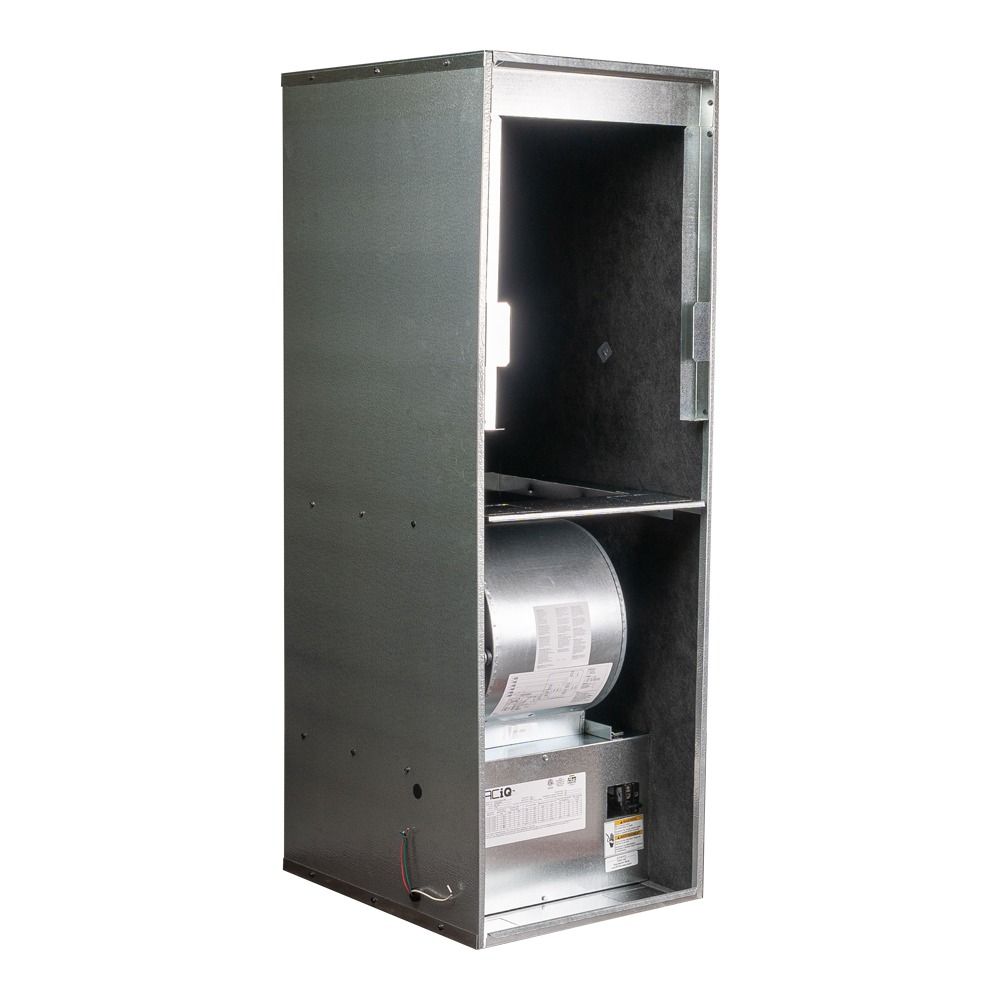

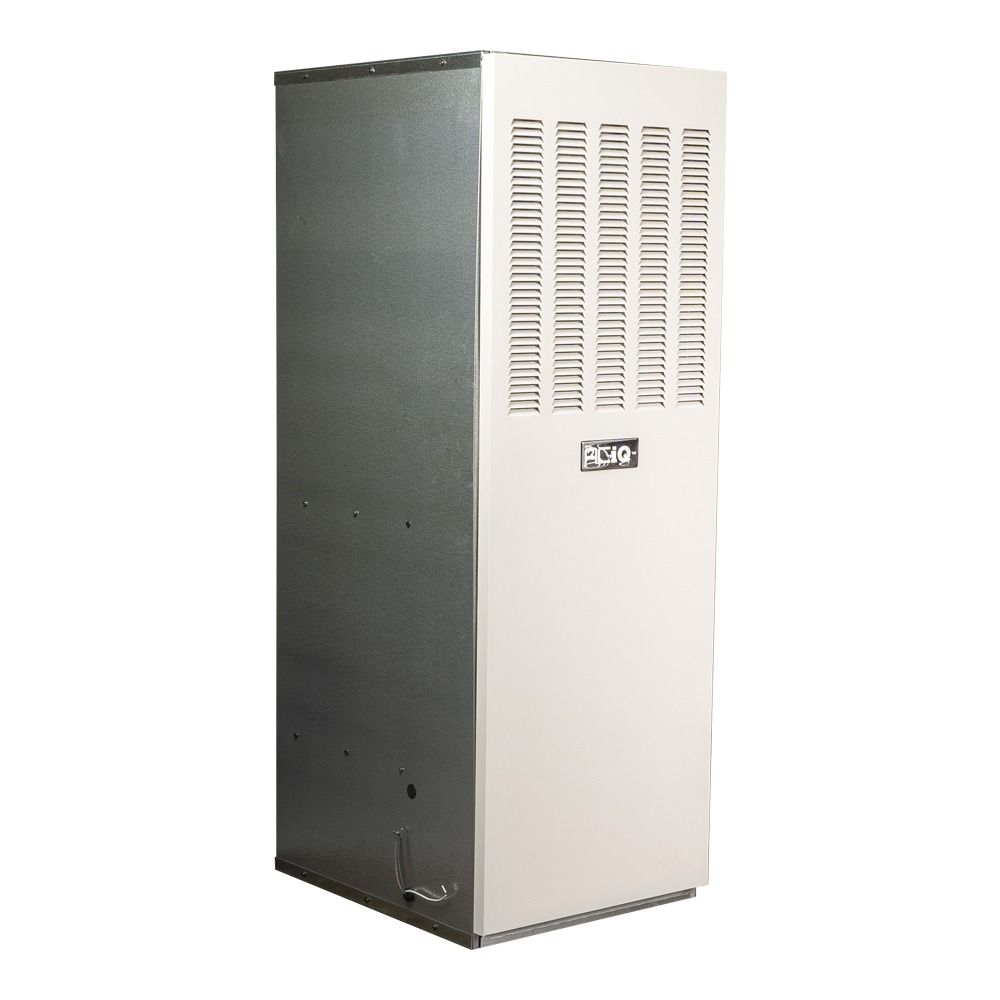

ACiQ 10kW Mobile Home Electric Downflow Furnace - R454B/R32 Compatible
OVERVIEW
The ACiQ-EFS1020FD-MH electric furnace is a reliable heat source for almost any mobile home application. With its easy installation and maintenance, this unit will provide comfort to your home in all-electric system setups.
QUICK FACTS
- 10 kW electric furnace
- R454B and R32 refrigerant compatible
- Can generally heat a small mobile home in ideal applications
- Low maintenance requirements
- Efficient multi-speed ECM blower motor
- Effective air filter to improve air quality
- Built-in circuit breakers for safety and dependability
- Sturdy, galvanized steel cabinet
- AC coil cabinet included with purchase (condenser and coil sold separately)
Modular Electric Heat Kit
The ACiQ-EFS1020FD-MH is generally able to heat up to a small mobile home in average installations. Models with electric heat include sequencers and temperature limit switches for safe, efficient operation. Modules are easily installed in the field using molex plugs or can be ordered factory-installed. Controls are accessible from the front for easy service. Disconnect does not protrude through the wall panel.
Warranty
Hassle-free five-year limited parts warranty.
Installation and Maintenance
The ACiQ-EFS1020FD-MH electric furnace is designed to be easily installed for a faster process, lowering labor costs. The filter is also easy to wash or replace, lowering maintenance costs.
Mobile Home Buying & Sizing Guide
- Mobile home approved product types
- Product differences
- Figuring out the right size unit for your needs
- Determining factors
- Repair vs. replace
2 Ton 13.4 SEER2 Single Stage Air Conditioner Condenser - R32
OVERVIEW
The ACiQ AQ-GLXS3BN2410 is a cooling-only condenser unit. Providing a 13.4 SEER2 efficiency with a single stage, reciprocating compressor, the AQ-GLXS3BN2410 is an inexpensive condenser to cool your home when paired with an AC coil.
QUICK FACTS
- Ideal size to cover a small house
- 2 ton, 13.4 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier
2 ton
The AQ-GLXS3BN2410 condenser is a 2 ton AC only unit. In an ideal climate situation, the AQ-GLXS3BN2410 can usually cover a small house. For this unit to function, an indoor air handler or coil is required, and this unit is cooling only with no heating capacity on its own.
13.4 SEER2
The ACiQ AQ-GLXS3BN2410 AC condenser is designed to be 13.4 SEER2. This is the lowest efficiency on the market today, making it an inexpensive option for northern states. Please note that this product is regulated by DOE Efficiency Standards.
Due to efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.
Warranty
The AQ-GLXS3BN2410 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
With an enhanced copper tube and aluminum fin coil, the AQ-GLXS3BN2410 is designed to prevent coil degradation. With the baked-on powder-paint finish, the condenser's heavy-gauge galvanized-steel cabinet is approved for up to 500 hours of salt-spray. The factory-installed filter dryer lowers general wear-and-tear on the unit. All of these features provide you with a durable, reliable condenser to be used whenever you need to cool your home.
Installation and Maintenance
The ACiQ AQ-GLXS3BN2410 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.
Comfort in Mind
The ACiQ brand always has its customer's comfort in mind. The AQ-GLXS3BN2410 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32
ACiQ RDS Kit Features
- Kit includes all components needed for RDS installation
- Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
- Flexible installation location, ideal for installs on existing equipment
- System designed to last the useful life of the evaporator coil
- Optional relay for controlling additional components
Technical Specifications — AQ-GLXS3BN2410
| sku | AQ-GLXS3BN2410 |
|---|---|
| weight (in lbs) | 130.000000 |
| brand/manufacturer | Private Brand |
| replaces | GSX130241 and GSXN3N2410 |
| product features | New Refrigerant Compliant |
| cooling btu | 24,000 |
| decibel level (dba) | 74 |
| horsepower | 1/8 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 13.4 |
| condenser stages | Single Stage |
| compressor type | Rotary |
| liquid line | 3/8" |
| suction line | 3/4" |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208 / 230 V. 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 10.9 Amps |
| tonnage | 2 Ton |
| connection | Sweat |
| height | 27.5" |
| width | 26" |
| depth | 26" |
| warranty | 10 Years Parts Limited Warranty with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACiQ-MH24CU3VYEC
| sku | ACiQ-MH24CU3VYEC |
|---|---|
| weight (in lbs) | 27.000000 |
| brand/manufacturer | ACiQ |
| replaces | ACiQ-M24CU3VYEC |
| configuration | Downflow |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 3/4" |
| tonnage | 2 Ton |
| style | A-Coil |
| height | 17 1/2" |
| width | 17 3/4" |
| depth | 19 5/8" |
| warranty | 10 Year Limited Warranty |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACiQ-EFS1020FD-MH
| sku | ACiQ-EFS1020FD-MH |
|---|---|
| weight | 115.000000 |
| manufacturer | ACiQ |
| product features | New Refrigerant Compliant |
| heating btu | 32,800 BTU |
| blower motor | ECM Multi Speed |
| drive type | Direct |
| maximum cfm | 1760 |
| horsepower | 3/4 HP |
| electric heat | 10 Kilowatts |
| configuration | Downflow |
| electrical | 240v 1 Phase |
| electric phase filter | Single Phase |
| max breaker size | 60 Amp |
| fuel type | Electric |
| height | 57" |
| width | 19 3/4" |
| depth | 24 1/2" |
| warranty | 5 Year Limited Parts Warranty |
