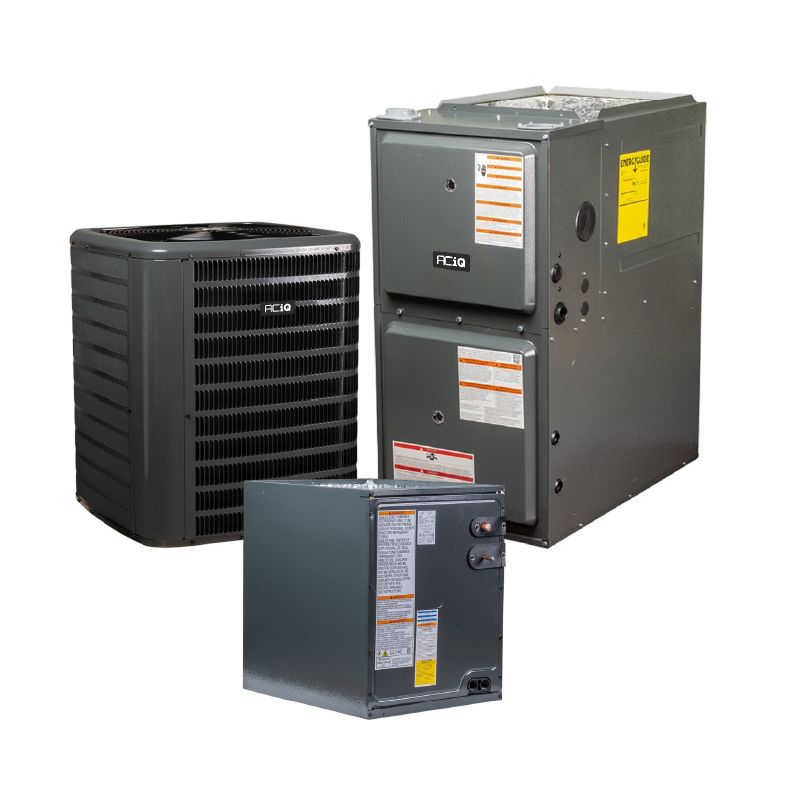

Product Overview
2.5 Ton 13.4 SEER2 Single Stage Air Conditioner Condenser - R32
OVERVIEW
The ACiQ AQ-GLXS3BN3010 is a cooling-only condenser unit. Providing a 13.4 SEER2 efficiency with a single stage, reciprocating compressor, the AQ-GLXS3BN3010 is an inexpensive condenser to cool your home when paired with an AC coil.
QUICK FACTS
- Ideal size to cover a small to medium house
- 2.5 ton, 13.4 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier
2.5 ton
The AQ-GLXS3BN3010 condenser is a 2.5 ton AC only unit. In an ideal climate situation, the AQ-GLXS3BN3010 can usually cover a small to medium house. For this unit to function, an indoor air handler or coil is required, and this unit is cooling only with no heating capacity on its own.
13.4 SEER2
The ACiQ AQ-GLXS3BN3010 AC condenser is designed to be 13.4 SEER2. This is the lowest efficiency on the market today, making it an inexpensive option for northern states. Please note that this product is regulated by DOE Efficiency Standards.
Due to efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.
Warranty
The AQ-GLXS3BN3010 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
With an enhanced copper tube and aluminum fin coil, the AQ-GLXS3BN3010 is designed to prevent coil degradation. With the baked-on powder-paint finish, the condenser's heavy-gauge galvanized-steel cabinet is approved for up to 500 hours of salt-spray. The factory-installed filter dryer lowers general wear-and-tear on the unit. All of these features provide you with a durable, reliable condenser to be used whenever you need to cool your home.
Installation and Maintenance
The ACiQ AQ-GLXS3BN3010 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.
Comfort in Mind
The ACiQ brand always has its customer's comfort in mind. The AQ-GLXS3BN3010 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-397-1392 if you have any questions.

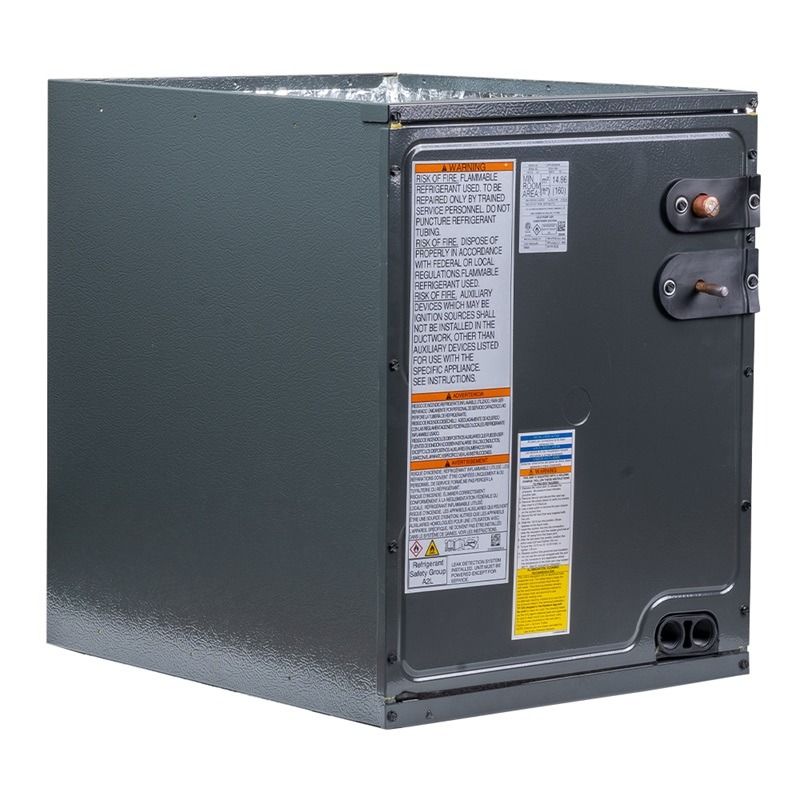

3 Ton 21" Width Vertical Evaporator Coil - Cased - R32
OVERVIEW
With the AQ-CAPFA3626C3 evaporator coil, ACiQ provides an enhanced comfort to your home. With its ability to work with AC-only systems or with heat pumps and its ability to be installed in both the upflow or downflow orientations, the AQ-CAPFA3626C3 is designed to be versatile in design and to provide an efficient comfort at a low cost.
QUICK FACTS
- 3 ton evaporator coil
- Installable in the upflow or downflow configurations
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Usable with either a heat pump or an AC-only condenser
- Low air leakage
- Check flowrater expansion device for use in any application
3 Tons
The ACiQ AQ-CAPFA3626C3 evaporator coil is rated for a 3 ton output. In many system configurations, this coil may be larger in tonnage than its paired condenser. This is intentional, to maintain the overall efficiency of the entire system. Please note that in order for this coil to function, a furnace or blower and a condenser is required, all sold separately.
Warranty
The AQ-CAPFA3626C3 coil is covered under ACiQ's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible condenser, and the entire system is registered online through the manufacturer.
Installation and Durability
The ACiQ AQ-CAPFA3626C3 evaporator coil is able to be installed in upflow and downflow applications. With its rust-resistant, thermoplastic drain plan, water retention rate is significantly lower than previous models. For even more enhanced durability, the cabinet is made of a strong galvanized-steel with a leather-grain finish. If you ever need to perform maintenance on your coil, there is a split-seam on the front of the casing for easy internal access. Please note that this coil will not work as a replacement for any single-piece air handler coils.
Enhanced Comfort
The AQ-CAPFA3626C3 evaporator coil's foil-faced insulation lowers air leakage, increasing the amount of air flow going into your ductwork, keeping you more comfortable while decreasing the unit's run time. With compatible equipment, the AQ-CAPFA3626C3 evaporator coil lives up to ACiQ's enhanced comfort and efficiency standards at a reasonable price.
80,000 BTU 96% AFUE 9-Speed Single Stage Gas Furnace - Upflow/Horizontal
OVERVIEW
The AQ-GR9S960805CN ACiQ gas furnace features high-quality construction and efficient operation at a great value. The AQ-GR9S960805CN single-stage, 9-speed furnace utilizes ACiQ's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the ACiQ AQ-GR9S960805CN.
QUICK FACTS
- This furnace is ideal to heat a medium-sized house (depending on climate)
- 80,000 BTU 96% efficient natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
80,000 BTU
The AQ-GR9S960805CN ACiQ gas furnace is 80,000 BTU's. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 76,800 BTU's (80,000 X 96% AFUE) per hour. In ideal climate conditions, this 80,000 BTU furnace is usually used to heat a medium-size house.
96% Efficiency Rating
The AQ-GR9S960805CN ACiQ gas furnace is 96% efficient, which is one of the highest efficiencies for gas furnaces on the market today. This means that 96% of the gas going into the furnace is used to heat your home, while the remaining 4% is lost out of the flue venting. Please note that all furnaces that are 90% efficient and higher require plastic/PVC flue venting while furnaces that are 80% efficient require metal flue venting.
Single Stage Furnace
The AQ-GR9S960805CN ACiQ gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.
Natural Gas or LP Furnace
From the factory, the AQ-GR9S960805CN runs on natural gas. However all ACiQ gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.
9-Speed ECM Blower Motor
Instead of the last generation PSC blower motor, the AQ-GR9S960805CN utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durable Hot Surface Ignitor
The hot surface ignitor on modern ACiQ furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.
Self-Diagnostic Control Board
The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.
Heavy Gauge Steel Cabinet
The heavy-gauge steel cabinet on new ACiQ furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.
Ease of Installation
The value of modern ACiQ furnaces doesn't end at efficiency. Today's ACiQ furnaces feature many different connection options to reduce installation. The AQ-GR9S960805CN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.
Please note that this furnace requires a if installed horizontally. Upflow configurations do not require the kit.
Technical Specifications — AQ-GLXS3BN3010
| sku | AQ-GLXS3BN3010 |
|---|---|
| weight (in lbs) | 149.000000 |
| brand/manufacturer | Private Brand |
| replaces | GSX130301 and GSXN3N3010 |
| product features | New Refrigerant Compliant |
| cooling btu | 30,000 |
| decibel level (dba) | 74 |
| horsepower | 1/8 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 13.4 |
| condenser stages | Single Stage |
| compressor type | Rotary |
| liquid line | 3/8" |
| suction line | 3/4" |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208 / 230 V. 1 Phase 60 Hz |
| max breaker size | 25 Amps |
| min. breaker size | 14.7 Amps |
| tonnage | 2.5 Ton |
| connection | Sweat |
| height | 32 1/2" |
| width | 26" |
| depth | 26" |
| warranty | 10 Years Parts Limited Warranty with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — AQ-CAPFA3626C3
| sku | AQ-CAPFA3626C3 |
|---|---|
| weight (in lbs) | 49.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| configuration | Upflow / Downflow |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 7/8" |
| tonnage | 3 Ton |
| style | A-Coil |
| height | 26" |
| width | 21" |
| depth | 21" |
| warranty | 10 Years with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — AQ-GR9S960805CN
| brand name | Private Brand |
|---|---|
| sku | AQ-GR9S960805CN |
| model | GR9S960805CN |
| unit type | Furnace |
| equipment type | Gas Furnace |
| short description | 80,000 BTU 96% AFUE 9-Speed Single Stage Gas Furnace - Upflow/Horizontal |
| airflow direction | Upflow/Horizontal |
| exhaust flue requirement | Plastic / PVC |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 96% |
| heating btu | 80,000 |
| blower motor | 9-Speed - ECM |
| maximum cfm | 2000 |
| configuration | Upflow/Horizontal |
| energy star | Yes |
| electrical | 115v 1 Phase 60 Hz |
| max breaker size | 25 Amps |
| min. breaker size | 16.7 Amps |
| burner stages | Single |
| fuel type | Propane, Natural Gas |
| height | 34 1/2" |
| width | 21" |
| depth | 28 3/4" |
| gross weight (lbs) | 145 |
| warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| ahri certificate number | 215224975 |
| registered warranty | Online Registration Required |
| has batteries | No |
| contains electronics | Yes |
| contains chemicals | Yes |
| contains aerosol | No |
| contains compressed gas | No |
| proposition 65 warning | Yes |
| restricted states | GU;PR;VI |
| freight class | 300 |
| safety information | This gas appliance requires a trained technician to install. Improper installation of gas lines or venting may result in death. Purchase implies agreement to use a trained technician. We assume no responsibility for injury or damage due to improper service. |
