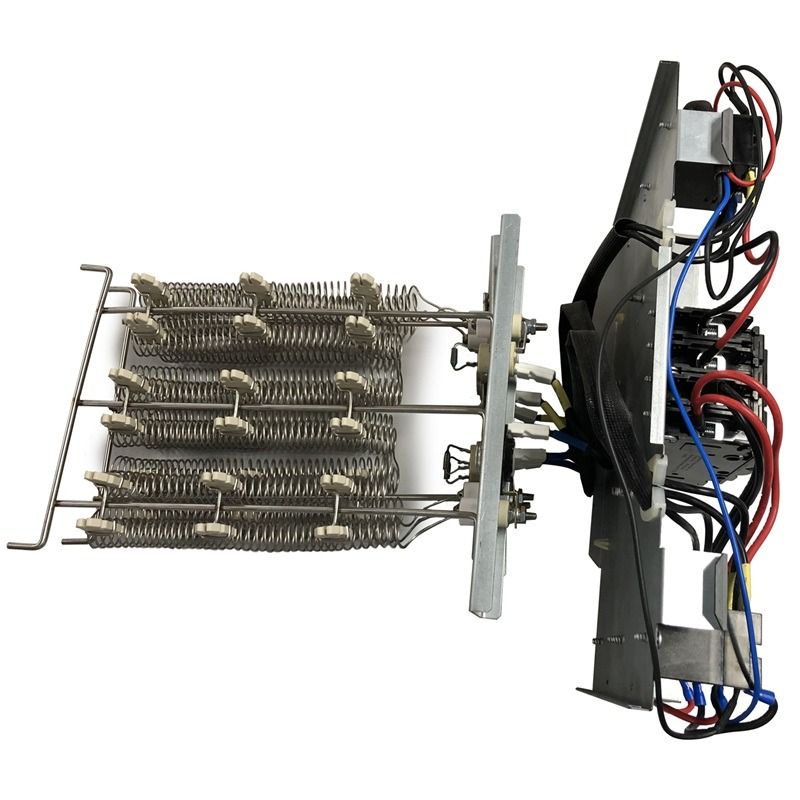

ACiQ 15 Kilowatt 51,150 BTU Heater Coil
Product Overview
The PEAH-15C(UL) is a 15kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.
Please note that this heater coil requires one 30 amp breaker to function.
Compatible Air Handlers
- ACiQ-18-PAH
- ACiQ-24-PAH
- ACiQ-30-PAH
- ACiQ-36-PAH
- ACiQ-48-PAH
- ACiQ-60-PAH
Technical Specifications — PEAH-15C(UL)
| sku | PEAH-15C(UL) |
|---|---|
| weight (in lbs) | 15.430000 |
| brand/manufacturer | ACiQ |
| heating btu | 51,150 |
| electric heat | 15 Kilowatts |
| electrical | 208/230V, 1 Phase, 60Hz |
| phase | Single Phase |
| max breaker size | Circuit 1: 25 / 30, Circuit 2: 50 / 60 |
| min. breaker size | Circuit 1: 23 / 27, Circuit 2: 46 / 53 |
| height | 8.07" |
| width | 22.00" |
| depth | 10.59" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
