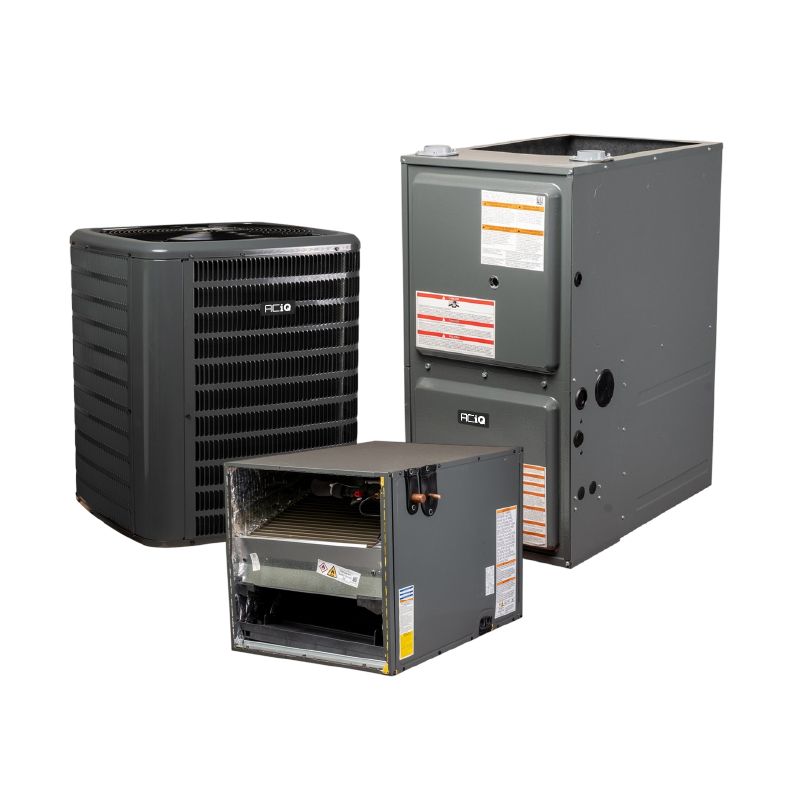

ACIQ 1.5 Ton 15.2 SEER2 96% AFUE 40,000 BTU Gas Furnace and R32 Air Conditioner System - Horizontal
Product Overview
1.5 Ton 15.2 SEER2 High Efficiency Central Air Conditioner Condenser - R32 Single Stage
OVERVIEW
ACiQ has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GSXH501810 is no exception, with its durability, reliability, and one of the highest efficiencies available.
QUICK FACTS
- Ideal size to cover a smaller house in ideal climates
- 1.5 ton, 15.2 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
1.5 Ton
The AQ-GLXS5BA1810 AC-only condenser is 1.5 tons, normally enough to cover up to a smaller house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.
15.2 SEER2
The AQ-GLXS5BA1810 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.
Warranty
The AQ-GLXS5BA1810 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The cabinet of ACiQ's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the AQ-GLXS5BA1810 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.
Installation and Maintenance
For easier maintenance, ACiQ designed the AQ-GLXS5BA1810's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the AQ-GLXS5BA1810 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.
Comfort in Mind
Superior comfort has always been the primary goal for ACiQ. The AQ-GLXS5BA1810 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-800-543-8933 if you have any questions.
2 Ton 17.5" Height Horizontal Cased Evaporator Coil - TXV - R32
OVERVIEW
The ACiQ AQ-CHPTA2426B3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the AQ-CHPTA2426B3 lives up to ACiQ's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.
Quick Facts
- 2 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
2 Tons
At an output of 2 tons, the ACiQ AQ-CHPTA2426B3 evaporator coil is ready for almost any horizontal application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser's tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit's efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.
Warranty
The AQ-CHPTA2426B3 coil is covered under ACiQ's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R32 condenser, and the entire system is registered online through the manufacturer.
Installation and Durability
The ACiQ AQ-CHPTA2426B3 horizontal evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil's durable cabinet has a split-seam.
Enhanced Comfort and Efficiency
The ACiQ AQ-CHPTA2426B3 horizontal evaporator coil's built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the AQ-CHPTA2426B3 to live up to the ACiQ quality name.
40,000 BTU 96% AFUE 9-Speed Single Stage Gas Furnace - Downflow/Horizontal
OVERVIEW
If you're looking to reduce your energy bill and improve the comfort of your home, look no further than ACiQ's AQ-GD9S960403BN. This gas furnace features efficient operation and high-quality construction to provide your home with reliable, affordable heating. The AQ-GD9S960403BN single-stage, 9-speed furnace is a great value designed for many applications.
QUICK FACTS
- This furnace is ideal to heat a small house (depending on climate)
- 40,000 BTU 96% efficient natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the downflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
40,000 BTU
The AQ-GD9S960403BN ACiQ gas furnace is suitable in output for a small house in ideal climate conditions. The 40,000 BTU count is the input per hour of the furnace, and the output is 38,400 BTU's (40,000 x 96% AFUE) per hour.
96% Efficiency Rating
The AQ-GD9S960403BN ACiQ gas furnace has a 96% efficiency rating. This means that only 4% of the fuel going into the furnace is used up in normal furnace operations and not used to heat your home. The remaining 96% of the inputted fuel is used to heat your home. 96% efficient furnaces is one of the highest efficiencies of natural gas furnaces available for purchase with today's technology. Please note that 96% efficient furnaces such as this one require plastic/PVC flue venting, and 80% efficient furnaces require metal flue venting.
Single Stage Furnace
A single stage furnace operates using the same amount of energy every time is turns on. The AQ-GD9S960403BN ACiQ gas furnace operates using only one heat output. This furnace will operate at 100% output whenever it is operating.
Natural Gas or LP Furnace
From the factory, the AQ-GD9S960403BN runs on natural gas. However all ACiQ gas furnaces can be converted to propane using the furnace's corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.
9-Speed ECM Blower Motor
The AQ-GD9S960403BN utilizes a 9-speed ECM motor, which is more efficient than older PSC blower motors, saving you money in electric bills.
Warranty
With installation that follows your state and local codes and with online registration, all ACiQ furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durable Hot Surface Ignitor
Instead of a standing pilot light, the AQ-GD9S960403BN has a newer, more efficient hot surface ignitor. Hot surface ignitors are much more efficient and safer than standard standing pilot lights.
Self-Diagnostic Control Board
The ACiQ brand has improved technology from years of production experience, allowing for a long-lasting product that rarely runs into any operation-based problems. However, if the furnace does need maintenance or warranty work, the control board has a set of sensors that will identify any basic problems in the furnace's basic operation.
Heavy Gauge Steel Cabinet
The AQ-GD9S960403BN ACiQ gas furnace has a durable outer cabinet. The heavy-gauge steel used in the furnace's design allows for a more protected interior, and less air leakage from the furnace's operation, resulting in a more quiet operation while still decreasing operation costs.
Ease of Installation
From enhanced operation to efficiency, the ACiQ gas furnaces have a lot to offer. However, ACiQ's features don't stop at quality of unit. The AQ-GD9S960403BN allows for a significantly more streamlined installation process with its universal design, consisting of its ability to be installed in either downflow or horizontal configurations, lowering labor costs.
Technical Specifications - AQ-GLXS5BA1810
| sku | AQ-GLXS5BA1810 |
|---|---|
| weight (in lbs) | 144.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| cooling btu | 18,000 |
| decibel level (dba) | 72 |
| horsepower | 0.125 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 15.2 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid line | 3/8" |
| suction line | 3/4" |
| electrical | 208/230v 1 Phase 60Hz |
| max breaker size | 20 Amps |
| min. breaker size | 11.9 Amps |
| tonnage | 1.5 Ton |
| connection | Sweat |
| height | 27" |
| width | 26" |
| depth | 26" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-CHPTA2426B3
| sku | AQ-CHPTA2426B3 |
|---|---|
| weight (in lbs) | 55.000000 |
| brand/manufacturer | Private Brand |
| product features | New Refrigerant Compliant |
| configuration | Horizontal |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 7/8" |
| tonnage | 2 Ton |
| style | A-Coil |
| certification | ETL Listed | AHRI Certified |
| height | 17.5" |
| width | 26" |
| depth | 21" |
| warranty | 10 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications - AQ-GD9S960403BN
| brand name | Private Brand |
|---|---|
| sku | AQ-GD9S960403BN |
| model | GD9S960403BN |
| unit type | Furnace |
| equipment type | Gas Furnace |
| short description | 40,000 BTU 96% AFUE 9-Speed Single Stage Gas Furnace - Downflow/Horizontal |
| airflow direction | Downflow/Horizontal |
| exhaust flue requirement | Plastic / PVC |
| product features | New Refrigerant Compliant |
| furnace efficiency / afue | 96% |
| heating btu | 40,000 |
| blower motor | 9-Speed - ECM |
| maximum cfm | 1200 |
| configuration | Downflow/Horizontal |
| energy star | Yes |
| electrical | 115v 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 10.1 Amps |
| burner stages | Single |
| fuel type | Propane, Natural Gas |
| height | 34 1/2" |
| width | 17.5" |
| depth | 28 3/4" |
| gross weight (lbs) | 113 |
| warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| ahri certificate number | 215224958 |
| registered warranty | Online Registration Required |
| has batteries | No |
| contains electronics | Yes |
| contains chemicals | Yes |
| contains aerosol | No |
| contains compressed gas | No |
| proposition 65 warning | Yes |
| restricted states | GU;PR;VI |
| freight class | 300 |
| safety information | This gas appliance requires a trained technician to install. Improper installation of gas lines or venting may result in death. Purchase implies agreement to use a trained technician. We assume no responsibility for injury or damage due to improper service. |
