Cooper&Hunter Hyper Olivia Midnight 2-Zone Ductless Mini Split AC & Heat Pump 19000 BTU (6K+9K), Wall Mount Units, 230V - R410A
The option to choose both aesthetics and functionality is brought by Cooper&Hunter’s Olivia Midnight indoor wall-mounted mini split series. The sleek black panel design offers an alternative to standard white-colored units and is designed for multi-zone applications. Auto-swing horizontal louvers help maintain even airflow, while features like Follow Me, Sleep, Timer, and 46° Freeze Protection enhance comfort and convenience.
This system pairs a 19000 BTU outdoor unit with CH-HPR19M-230VO + CH-B06MOLVWM-230VI + CH-B09MOLVWM-230VI indoor units for independent control across 2 zones. Olivia Midnight indoor units are available in 6K, 9K, 12K, 18K, and 24K BTU/h models and can be paired with Regular or Hyper Heat outdoor units (as applicable). Genius Core Technology supports ultra-low compressor operation down to 12Hz for energy savings, with efficiency ratings up to 26.4 SEER2 (model dependent).
Key features
Capacity & comfort modes
- Available indoor capacities from 6,000 to 24,000 BTU/h (varies by model)
- 2-zone independent temperature control
- Auto-swing horizontal louvers for even airflow
- Follow Me mode (remote-based temperature sensing)
- Turbo mode for rapid cooling/heating
- Sleep mode + Timer On/Off scheduling
- New user-friendly remote controller design
Efficiency & protection
- Genius Core ultra-low compressor speed of 12Hz
- High efficiency operation (up to 26.4 SEER2, model dependent)
- Low-ambient performance down to -22 F
- 46°F Freeze Protection
- Eco mode (single-zone only, if equipped)
- Self-Clean function (single-zone only, if equipped)
Smart & control
- WiFi Ready (Smart Kit Ready)
- Downloadable C&H app (with optional Smart Kit)
- Remote control included
At-a-glance
2 zones
19000
22
-22 F
R410A
61 dB(A)
20.5 dB(A)
CH-HPR19M-230VO
Remote + App Ready
Warranty requires licensed HVAC installation and registration within 60 days (if required).
Control options
- Smart Kit Ready
- Downloadable C&H app (when used with Smart Kit)
- Remote control included
- Wall thermostat compatible (purchased separately, if supported by the model)
Outdoor technology
- High-Frequency Racer Technology: enables the compressor to reach maximum speed within ~6 seconds on startup
- High-efficiency pipes: 54 teeth design to increase heat exchange
- Intelligent dusting switch: reverses the fan to help clear dust, sand, and other debris from the coil
- Genius Core ultra-low compressor speed of 12Hz
Refrigerant information
- Refrigerant type: R410A
- R410A note: R410A is a high-pressure refrigerant used in many ductless systems. Service tools, gauges, and recovery equipment must be rated for R410A pressures.
- Charging: Follow the installation manual for the required charge method and any additional charge per foot beyond the factory pre-charge.
- Installation best practice: Keep the refrigeration circuit sealed and dry to reduce moisture exposure during installation/service.
{REFRIGERANT_NOTE}
Installation & electrical
- Indoor line sizes (varies by head): 1/4" - 3/8''
- Refrigerant: R410A
- Factory pre-charge: up to 50
- Additional refrigerant charge (1/4 liquid line): 0.16
- Additional refrigerant charge (3/8 liquid line): 0.32
- Minimum circuit ampacity: 20
- Max fuse / breaker: 25
Use the installation manual to confirm charge units and when additional charge is required (based on line length and piping configuration).
Product video
What’s included

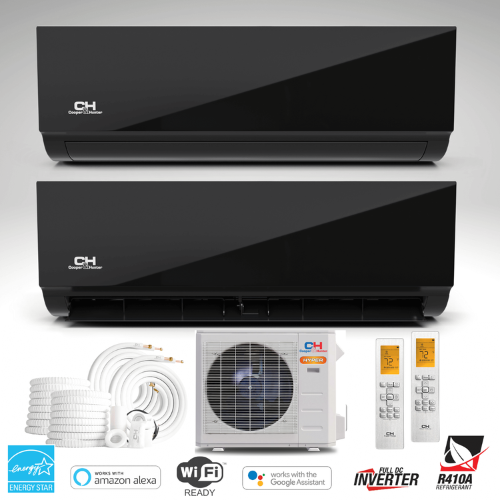

Cooper & Hunter Olivia Midnight Series Ductless Mini Split System

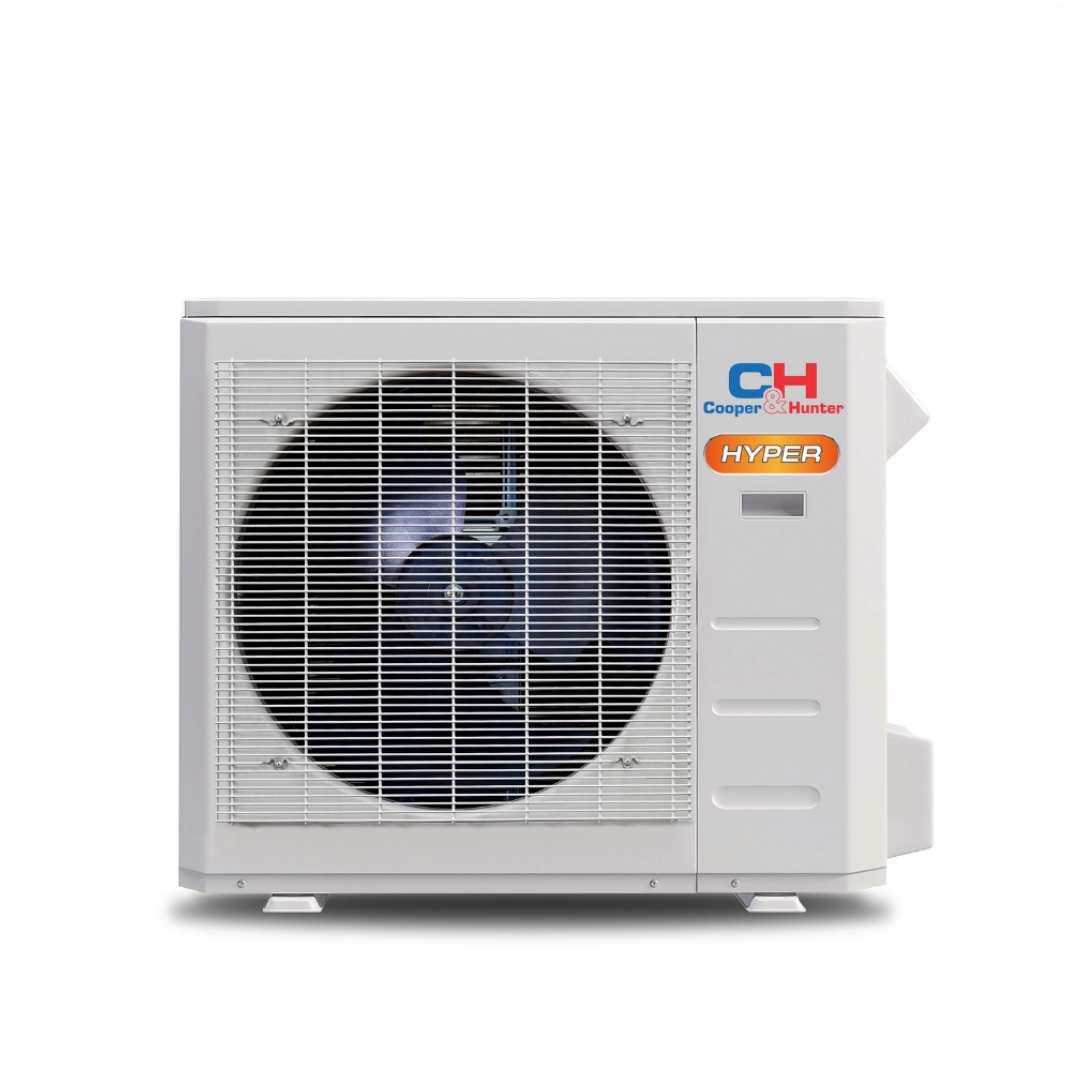

Outdoor Unit: 19000 BTU (1 pc) — Model: CH-HPR19M-230VO
Indoor Units:

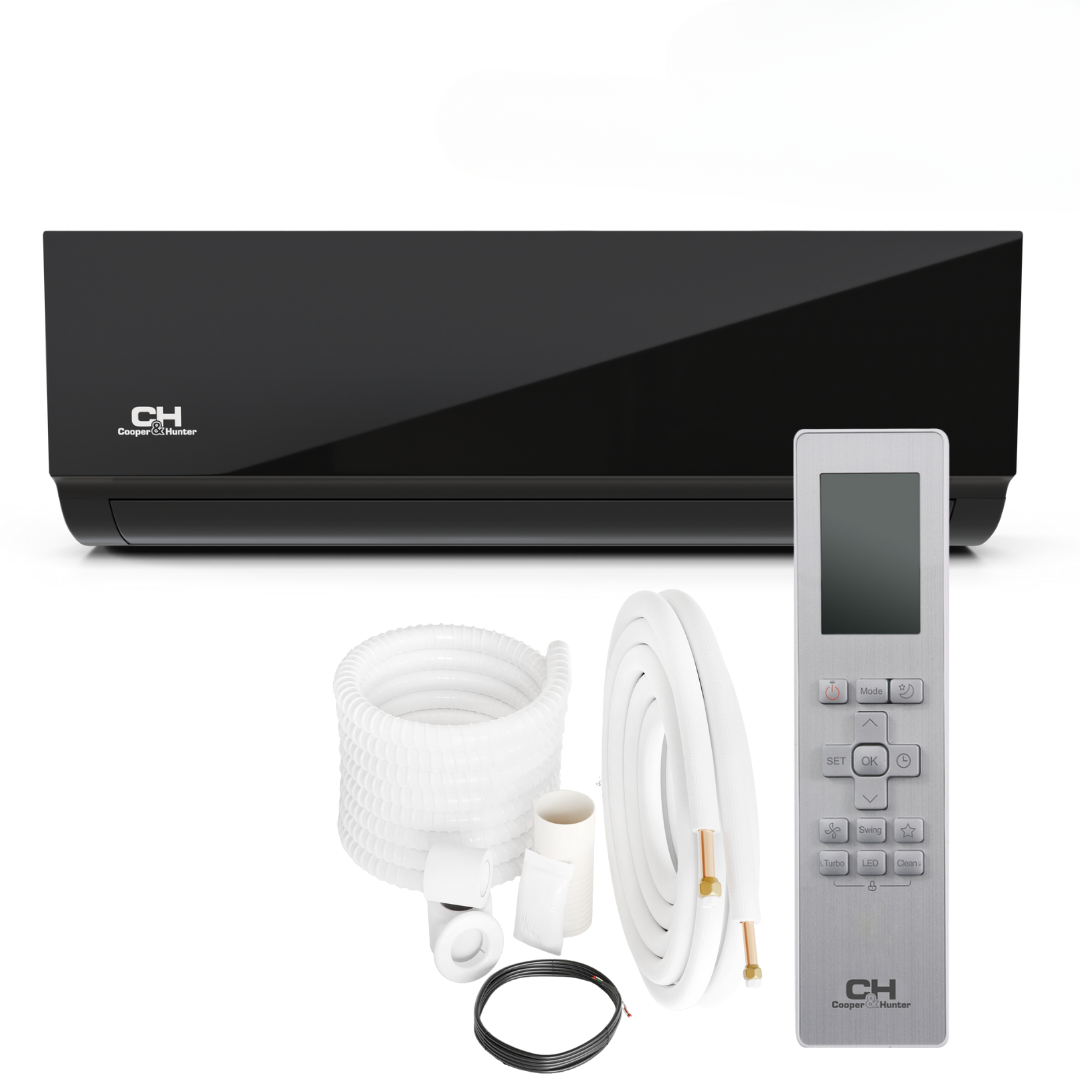

- 6,000 BTU (x1) — Model: CH-B06MOLVWM-230VI
- 9,000 BTU (x1) — Model: CH-B09MOLVWM-230VI
- Installation Kits options (No Installation / 16 ft / 25 ft / 50 ft)
- (INSTALLATION KIT SIZE MUST BE SELECTED, TO INCLUDE)
- Wireless Remote Controls (2 remotes)
- Wi-Fi Adapter (Smart Kit, if selected/included for the listing)
- Installation Manual
- User's Manual
- Manufacturer Warranty
Complete technical specifications — Indoor
Indoor Unit Specifications — CH-B06MOLVWM-230VI
| System type | Single/Multi-zone unit |
|---|---|
| BTU Rated | 6,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 0.74 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 31.10x10.63x14.76 |
| Controller | RG10K-exclusive remote |
| Refrigerant piping Liquid/Gas side (inch) | 1/4" - 3/8'' |
| EER2 | 15 |
| SEER2 | 23.5 |
| Unit Net/Gross weight | 17.64/22.49 |
| Unit dimensions (W*H*D) | 28.70x7.87x11.50 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 38.5/33/20.5 |
| Indoor Air Flow | 294.12/247.06/176.47/141.18 |
| Drainage water pipe diameter | 5/8" |
Indoor Unit Specifications — CH-B09MOLVWM-230VI
| System type | Single/Multi-zone unit |
|---|---|
| BTU Rated | 9,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 0.85 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 34.45x11.22x14.96 |
| Controller | RG10K-exclusive remote |
| Refrigerant piping Liquid/Gas side (inch) | 1/4" - 3/8'' |
| EER2 | 15.8 |
| SEER2 | 26.4 |
| Unit Net/Gross weight | 18.96/24.25 |
| Unit dimensions (W*H*D) | 31.57x7.87x11.61 |
| Operation Range - Heating | 32~86 |
| Operation Range - Cooling | 60~90 |
| Minimum circuit ampacity | 3 |
| Max.fuse | 15 |
| Indoor Noise Level H/M/L | 40/35/23.5 |
| Indoor Air Flow | 341.18/291.18/194.12/152.94 |
| Drainage water pipe diameter | 5/8" |
Manuals
- https://media.cooperandhunter.us/1143/WALL-MOUNTED-INSTALLATION-MANUAL.pdf
- https://media.cooperandhunter.us/3759/Accessories-Leaflet-2023.pdf
- https://media.cooperandhunter.us/2715/InstallationManual-Olivia_MIDNIGHT.pdf
- https://media.cooperandhunter.us/2716/Owners-manual-Olivia-MIDNIGHT.pdf
- https://media.cooperandhunter.us/2826/Olivia-Midnight-Leaflet.pdf
- https://media.cooperandhunter.us/3818/Remote-manual-content.pdf
Submittals
- https://media.cooperandhunter.us/3111/CH-B06MOLVWM-230VI.pdf
- https://media.cooperandhunter.us/3139/CH-HPR06F9-230VO-%2B-CH-B06MOLVWM-230VI.pdf
- https://media.cooperandhunter.us/3112/CH-B09MOLVWM-230VI.pdf
- https://media.cooperandhunter.us/3134/CH-ES09-230VO-%2B-CH-B09MOLVWM-230VI.pdf
- https://media.cooperandhunter.us/3140/CH-HPR09-230VO-%2B-CH-B09MOLVWM-230VI.pdf
Documents
Complete technical specifications — Outdoor
Outdoor Unit Specifications — CH-HPR19M-230VO
| Refrigerant type | R410A |
|---|---|
| System type | Multi-zone unit |
| BTU Rated | 19,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 3.57 |
| Max. pipe length (ft) | 131 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 42.91x19.69x34.84 |
| Refrigerant piping Liquid/Gas side (inch) | 2x1/4" - 2x3/8" |
| HSPF2-5 | 7.7 |
| HSPF2-4 | 9.8 |
| EER2 | 12.5 |
| Cooling capacity (Min/Max) (BTU/h) | 19,000(5,500~25,000) |
| SEER2 | 22 |
| Unit Net/Gross weight | 138.23/149.03 |
| Unit dimensions (W*H*D) | 37.24x16.14x31.89 |
| Refrigerant precharge | up to 50 |
| Outdoor Noise Level | 61 |
| Outdoor Air Flow | 2,129.41 |
| Minimum circuit ampacity | 20 |
| Max.fuse | 25 |
| Max height difference between Indoor and Outdoor unit | 49.21 |
| Heating capacity (Min/Max) (Btu/h) | 20,000(8,100~29,600) |
| COP | 3.4 |
| Ambient temperature - Heating (F) | -22~75 |
| Ambient temperature - Cooling (F) | 5~122 |
| Additional Refrigerant Charge 3/8 liquid line | 0.32 |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Manuals
Submittals
- https://media.cooperandhunter.us/3170/CH-HPR19M-230VO-%28Ducted%29.pdf
- https://media.cooperandhunter.us/3171/CH-HPR19M-230VO-%28Non-ducted%29.pdf
Documents
Warranty information
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
- 1-Year Remote Control Warranty
Note: Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.
Summary
Expand
The Cooper & Hunter Olivia Midnight system pairs a 19000 BTU outdoor unit with CH-HPR19M-230VO + CH-B06MOLVWM-230VI + CH-B09MOLVWM-230VI indoor units for independent control across 2 zones, combining a sleek black-panel design with smart-ready controls, comfort modes, and 46°F Freeze Protection.
